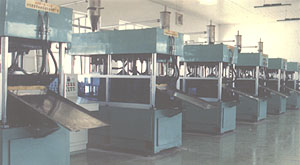

Semi-automatic Production Line
 Automatic Production Lines |
 With the
development of world economy, the reasonable use of the global reasources and natural protection about human being's living conditions are being causing attraction by the world. Production and sale of green products will become the main tendency of world market sale in the 21st century. The "White pollution" from plastic makings have become serious problem nowadays. "Plastic instead of paper" is becoming the developing direction of world wide package industry reform. |
|
|
Our company's production line of paper made tableware, which has advanced technology, reasonable craft and steady equipment, have produced a series of qualified enironmental protection goods, such as one- time-use fast-food box, convenient noodle bowl, plate, cup etc. According to the customers' demands, they all can be manufactured in different styles and specificatios to meet the market's need. |
|
 |
|
| Electricity Control Box |
Paper Pulp Made Equipment |
Liquid Pressure Control System |
| The
major featrues of the production line are: |
 The raw materials of production line are paper pulp board made of rdsidues of
reed and sugarcane. The whole production peocess is non-pollution, adding chemical
water-proof and oil-resistence catalysts. |
|
| The
artomatic paper pulp model-production line belongs to high technology products, involving
machinery, electricity, liquid pressure and vacuum, PC automatic control technology and
paper production, chemistry as well as other knowledge. The high efficient and energy
adving production line is wholly controlled by computer. |
|
| The
critical parts are all imported. The major machine made from cast-steel, which having been
processed by the test of effectiveness for a given period of time, has steady operation
and reliable quality. |
|
| The
machine is small and exquisite. You can use several machines to make up one production
line that manufacture not only a kind of product, but also several kinds of product. And
you can either control the production line at the same time or just one machine. The
machine has strong production continuity and easily repaired. |
|
| Our
enterprise can supply the whole series of paper-made tableware production equipment,
technology and lifelong after-sale service. |
|
| Specification:
|
 Implementation
standards: QZ96-012 |
| Out line dimemsions of main part | 2.5m long, 1.1m wide, 2m high |
| Weight | 3800Kg |
| Out line
dimensions of liquid pressure station |
1m long, 0.6m wide, 1.1m high |
| Weight | 500Kg |
| Out line dimensions of control box | 101cm long, 75cm wide, 140cm high |
| Weight | 600Kg |
| Production ability of design | 500-600
fast-food boxes per hour (one machie) |
| Products
(fast-food) specification: |
| Implementation
standards: TB/T 2611-94 |
| Out line dimensions | 185mm long, 115mm wide, 45mm high |
| Volume | 600ml |
| Weight | 22-25 g (one fast-food box) |
| White degree of products (reed pulp) | 75กใ- 80กใ |
| Time of natural disintegration | < 2 months |
| Paper pulp consumption of production line | 16Kg/h |
Bowls and plates are processed by model according to consumers' demands |
|
| Engineering
cnditions of production line (a production line composed of six machines): |
| Order | Item | Quota | Remarks | |
| 1 | Electricity need of production line | 240 KW | กก | |
| 2 | Energy consumption | Electricity consumption | 180 KW/h | 75% of electricity need |
| Water consumption | 200 Kg/h | Consumption
100 m (if circulate water) |
||
| 3 | Production line | Workshop | 400 m |
กก |
| Material house | 120 m |
กก | ||
| Product horse | 120 m |
กก | ||
| 4 | Investment of production equipment | $390,000
USD ($65,000กม6) |
Not including factory construction and pulp production equipment | |
| 5 | Operator
number in the whole production line (per shift) |
8 - 10 persons | กก | |
